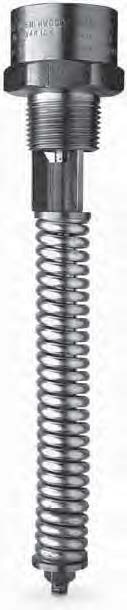

LP Relief Valves
LP relief valves are designed for containers with 250 to 1000 gallon capacity. The valve is mounted outside the hood, if fitted near the hood, then it has a protective cap.
The LP container relief valve remains in the closed position by the force of a powerful spring as long as the pressure inside the tank is lesser than that of the spring.
Outstanding Features:
- Made of non-corrosive materials
- Body made of brass
- Spring and stem made of stainless steel
- Seal disc is resilient rubber
- High capacity, low turbulence
- Maximum guiding area for shut off after opening
- Built in spring limits the full open position of the seat
- The 3” NPT external thread body offers easy attachment of vents, pipes, adapters
- If the body gets damaged, there is no hindrance to the opening of the valve as there are no seat disc retainers
