Gate Valves

Gate Valves

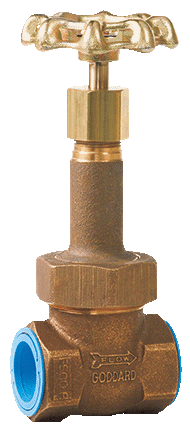

JTC Valve Sales have evolved as the leading suppliers for Goddard gate valves which are manufactured in the USA at their modern facility in the State of North Carolina. Bronze gate valves and stainless steel gate valves are available for most cryogenic services. JTC Valve strives to stock the widest range of valves that are manufactured in the USA.

Goddard gate valves are made from the highest quality material and are approved for their intended purpose in US, Canada and around the world. Four manufacturing facilities are set up in North Carolina with in-house testing facility for design and performance. Goddard manufactures that are ISO9001 certified which is an assurance of safety and reliability no matter for what application you use them.

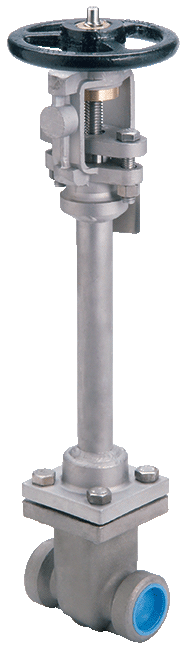

Features of Goddard Stainless steel Gate Valve

  • Many of the The valves can be permanently installed in the line of flow and can be easily serviced from the top
  • The PCTFE seat provides a tight butt seal and is easily replaceable
  • Available in sizes from 15 mm to 150 mm to suit almost every need
  • Available as RF flanges, Butt weld, socket weld and pipe thread
  • Many are ideal use is for liquefied and vaporized atmospheric gases, LNG
  • Many are ideally suited for use in oxygen as per CGA G-4.1
  • The temperature range is between -325 deg F to 150 deg F
  • Pressure rating (cold, non shock) is 19 bars or 275 PSI for class 150 valves and 50 bars or 720 PSI for class 300 valve

Gate valves that are highly reliable, durable and most competitively priced valves are available at JTC Valve Sales, the leading suppliers for valves.

 -   +
