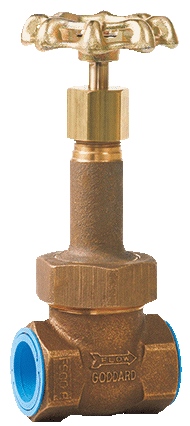

310 Series Bronze Gate Valve

310 Series Bronze Gate Valve

The Bronze 310 Series valve is used in cryogenic supply applications. The gate design supports a straight, high flow applications and has the highest CV rating in the industry.

Outstanding Features:

  • Bronze cast body and bonnet
  • Rugged bonnet construction for a long life
  • Extended stem for cryogenic service
  • Permanently install the union bonnet valve in the line as it can be serviced from the top
  • KOLD-SEAL™ design prevents loss of gas
  • PCTFE (Neoflon®) with a bubble tight soft seat design that is replaceable
  •  Sizes available from ½” - 3” (15mm - 80mm)
  •  Threaded FNPT , SBT (Sil Braze Tube) or brazed in stainless steel  pipe nipples
  • Used in LNG service, liquefied and vaporized atmospheric gases
  • Working temperatures -325°F - +150°F (-196°C +65°C)
  • Working (cold, non shock) pressure rating of 300 PSIG (cold)
