Bronze 322 Series

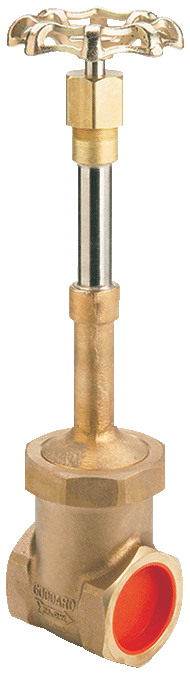

322 Series - Bronze Gate Valves 400 PSIG COLD WORKING PRESSURE Ideal for cryogenic supply and storage handling applications. Straight-through flow for highest CV rating in the industry. Also available with GRAFOIL® packing
Top Entry: This union bonnet valve can be permanently installed in the line and serviced from the top
Construction: Bronze cast body and Internals, Rugged construction for long life, Straight through construction for high CV, Designed with unique KOLD-SEAL™, Standard split wedge design provides better sealing and cycle life
Sizes: ½” - 3” (15mm - 80mm)
Ends: Threaded (FNPT), Sil Braze Tube (SBT), Silver Brazed Pipe (SBP) or with stainless steel pipe nipples brazed in
Service: Liquified and vaporized atmospheric gases, LNG
Temperature Rating: -325°F - 150°F (-196°C + 65°C)
Pressure Rating: (Cold, Non-shock)
322 Series 400 PSIG
326 Series 600 PSIG
Designed to MSS SP-80 and ASME B31.3
Series 1.5” to 3” PED Approved per EN 10204, 3.1
-
$679.40
-
$887.50
-
$1,474.10
-
$1,474.10
-
$1,684.70
-
$1,684.70
-
$285.80
-
$370.00
-
$421.30
