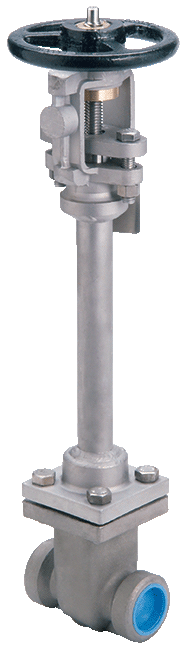

Stainless Steel 110 Series ANSI Class 300#
Top Entry: This valve can be permanently installed in the line and serviced from the top
Soft Seated: PCTFE Seat provides a virtually bubble tight seal and is replaceable
Construction: Stainless steel body and bonnet
Sizes: ½” - 6” (15mm - 150mm)
Ends: RF Flange, Butt weld, Socket weld, Threaded (FNPT)
Service: Liquified and vaporized atmospheric gases, LNG
Temperature Rating: -325°F - 150°F (-196°C +65°C)
Pressure Rating: (Cold, Non-shock)
Class 300 valve - 720 PSIG (50 bar)
PED Approved, Approved for US and Canada
½” - 6” Class 300
PED Approved, Approved for US and Canada
