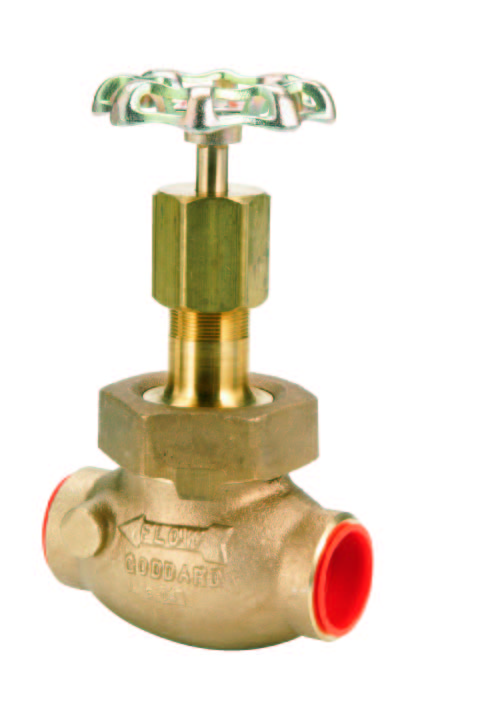

Bronze 202X Series

The Bronze 202X series valves with non extended stem are designed for selective cold gas applications.
Outstanding Features:
Bronze cast body and bonnet
Rugged construction for longer life
The valve can be permanently installed in line as it can be serviced from the top
Sizes: ¼” through 2” (8mm through 50mm)
The ends are threaded (FNPT), SBT (Sil Braze Tube) or with brazed in stainless steel nipples
The PTFE seat design with Kold-Seal™offers bubble tight seating, prevents cryogenic gas loss and a high cycle life
Highest CV for straight through flow of gas
Temperature range -325°F to 150°F (-196°C to +65°C)
Cold, non shock pressure rating : 400 PSIG
-
$848.46
-
$848.46
-
$1,236.82
-
$1,236.82
-
$573.11
-
$699.33
