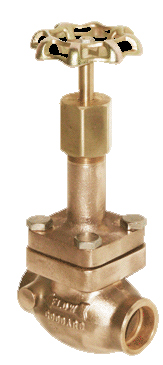

Bronze 206BLL Series

Bronze 206BLL Series

The Bronze 206 BLL series Bronze Globe Valves with non extended stem are designed for selective cold gas applications.

Outstanding Features :

  • Bronze cast body and bonnet
  • Live loaded packing – bolted bonnet
  • Rugged construction for longer life
  • The Bronze 206 BLL valve can be permanently installed in line as it can be serviced from the top
  • Sizes: ¼” through 2” (8mm through 50mm)
  • The ends are threaded (FNPT), SBT (Sil Braze Tube) or with brazed in stainless steel nipples
  • The PTFE seat design with Kold-Seal™offers bubble tight seating, prevents cryogenic gas loss and a high cycle life
  • Highest CV for straight through flow of gas
  • Temperature range -325°F to 150°F (-196°C to +65°C)
  • Cold, non shock pressure rating : 600 PSIG
  •  -   +
