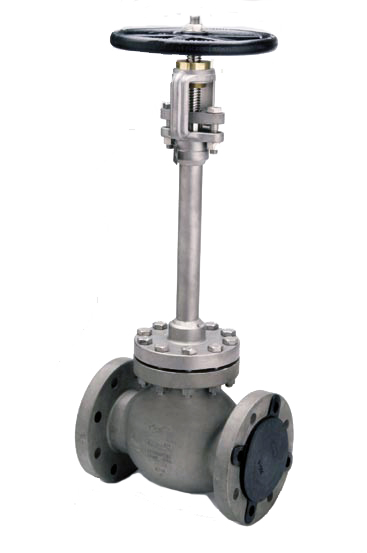

Stainless Steel 210 Series
Our investment cast stainless steel is specified by leading industrial gas companies for storage tank and yard operations. Special bonnet extensions can be supplied for cold box applications Valves for hydrogen use can be supplied.
Features:
- Top Entry: This valve can be permanently installed in the line and serviced from the top
- Soft Seated: PCTFE Seat provides a virtually bubble tight seal and is replaceable
- Construction: Stainless steel body and bonnet
- Sizes: ½” - 6” (15mm - 150mm)
- Ends: RF Flange, Butt weld, Socket weld, Threaded (FNPT)
- Service: Liquified and vaporized atmospheric gases, LNG
- Temperature Rating: -325°F - 150°F (-196°C +65°C)
- Pressure Rating: (Cold, Non-shock)
- Class 150 valve - 275 PSIG (19 bar)
- Class 300 valve - 720 PSIG (50 bar)
- ½” - 4” Class 150
- PED Approved, Approved for US and Canada
- ½” - 4” Class 300
- PED Approved, Approved for US and Canada
-
$2,259.50
-
$3,175.50
-
$3,426.80
-
$2,726.00
-
$2,844.70
-
$5,930.10
-
$5,930.10
-
$5,687.10
-
$5,948.00
-
$6,190.00
-
$8,939.80
-
$8,066.20
